Si wafer: Essential material for microelectronics, pivotal in semiconductor industry

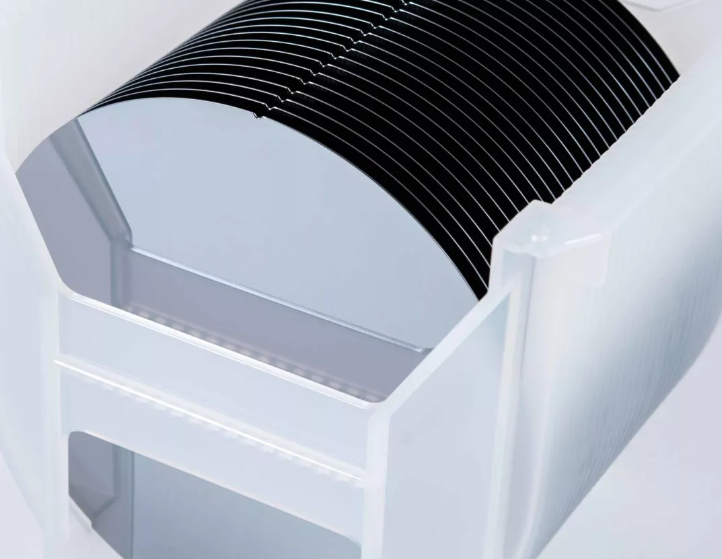

    Si wafer

    Si wafer’s abstract

    Silicon wafers, commonly referred to as Si wafers, represent a cornerstone of modern technological innovation, serving as the essential foundation for the fabrication of integrated circuits (ICs) and various semiconductor devices. These thin slices of single-crystal silicon are indispensable components that underpin the development of intricate electronic systems driving advancements across numerous industries. This expanded abstract offers a detailed exploration of Si wafers, encompassing their intricate manufacturing techniques, nuanced physical attributes, diverse applications, and the dynamic evolution of semiconductor technology.

    Manufacturing Techniques:

    The production of silicon wafers involves a sophisticated series of manufacturing techniques designed to create substrates of unparalleled quality. This process typically initiates with the growth of a single-crystal silicon ingot, achieved through methodologies like the Czochralski process or the Float Zone technique. The resulting ingot is meticulously sliced into thin wafers using advanced cutting tools, with utmost precision to minimize material wastage. Subsequent steps entail surface treatments to eliminate impurities and defects, followed by polishing and cleaning procedures to achieve the desired surface smoothness and cleanliness crucial for semiconductor fabrication.

    Physical Characteristics:

    Silicon wafers possess a plethora of physical characteristics that render them ideally suited for semiconductor applications. Primarily comprising single-crystal structures, these wafers exhibit uniform lattice orientations, ensuring consistent electrical performance across their surfaces. Available in various diameters and thicknesses, ranging from a few inches to over a foot in diameter and from tens to hundreds of micrometers in thickness, Si wafers offer versatility to accommodate diverse device requirements. The meticulously engineered wafer surfaces present an immaculate canvas conducive to the precise patterning of electronic components during subsequent manufacturing phases.

    Wide-Ranging Applications:

    The utility of Si wafers extends across a broad spectrum of industries, with the semiconductor sector standing as the primary beneficiary. These wafers serve as the substrate material for the production of ICs, microprocessors, memory modules, and an array of electronic components integral to modern computing and communication devices. Beyond the realm of microelectronics, Si wafer play a pivotal role in photovoltaic cell manufacturing for solar energy applications. Additionally, they find application in the creation of sensors, MEMS devices, and various microsystems essential to sectors ranging from automotive to medical electronics.

    Evolving Landscape of Semiconductor Technology:

    The landscape of semiconductor technology continues to evolve at a rapid pace, fueled by ongoing innovation and emerging trends. Noteworthy among these trends is the increasing demand for larger-diameter wafers, such as 300mm and 450mm variants, aimed at enhancing manufacturing efficiency and cost-effectiveness. Additionally, there is a growing emphasis on the development of novel wafer materials and structures, including silicon-on-insulator (SOI) wafers, silicon germanium (SiGe) substrates, and III-V compound semiconductor wafers, to augment device performance and unlock new functionalities. Furthermore, advancements in wafer processing methodologies, encompassing advanced lithography techniques, thin-film deposition processes, and innovative wafer bonding approaches, are poised to drive further advancements in semiconductor technology.

    In conclusion, Si wafer stand as indispensable enablers of technological progress, serving as the bedrock upon which the modern semiconductor industry thrives. Their intricate manufacturing processes, unique physical characteristics, diverse applications, and pivotal role in advancing semiconductor technology underscore their significance in shaping the trajectory of innovation. As the semiconductor landscape continues to evolve, silicon wafers are poised to remain at the forefront of technological advancement, driving continued innovation and ushering in new possibilities across various industries.

    Si wafer’s data chart (other specifications available)

    Product:Silicon (Si) wafer
    Grade:IC prime grade
    Purity:>99.999999999% (11N)
    Dimension:Standard dimensions:• 1” × 0.5 mm• 2” × 0.28 / 0.4 / 0.5 mm• 3” × 0.38 mm• 4” × 0.525 mm• 5” × 0.6 mm• 6” × 0.625 mm• 8” × 0.725 mm
    Other diameters and thicknesses available• We provide small-scale non-standard wafers for research / testing purposes.
    Orientation:<100> / <110> / <111> / off-axis / others
    Conductive type:•  Undoped (also called intrinsic, native) type•  N-type: phosphor (P) doped•  P-type: boron (B) doped
    Resistivity:Standard resistivity for undoped wafers:• 3000 – 6000 Ω·cm
    Standard resistivity for n-/ p-type wafers:• 0.001 – 0.009 Ω·cm• 1 – 10 Ω·cm• 10 – 20 Ω·cm• 90 – 100 Ω·cm
    Other resistivity available
    Polishing:• As-cut wafers without polishing• Single side epi-polished• Double side epi-polished
    Surface roughness:< 0.5 nm
    Remarks:Si wafer with functional layers available (thermal oxide SiO2, silicon nitride Si3N4, etc)

    Si wafer’s properties

    Silicon wafers (Si wafers) are a basic material used in semiconductor manufacturing and have many unique physical and chemical properties. Below is a detailed description of the properties of Si wafers and their importance in the semiconductor industry.

    Crystal structure: The silicon wafer is composed of pure silicon crystals, and its lattice structure belongs to the diamond cubic structure. Silicon atoms are joined together in covalent bonds to form a uniform crystal structure.

    Crystal orientation: Silicon wafer usually has < 100> , < 110> < 111> Crystal orientation, which determines its specific use and performance in the manufacturing process.

    Crystal face: The surface of a silicon wafer is usually a (100) or (111) crystal face, which has an important impact on different types of processing.

    Size: Wafers are typically 2, 4, 6, 8, or 12 inches in diameter, depending on the requirements of the final product and the limitations of the manufacturing process.

    Thickness: The thickness of silicon wafers typically varies between a few hundred microns to several millimeters, depending on the manufacturing process and the end application.

    Impurity content: High purity is one of the key characteristics of Si wafer Impurity levels must be kept extremely low, usually measured in parts per million (ppm).

    Electronic structure: A silicon wafer is a semiconductor material whose electronic structure allows it to become a conductor or insulator when properly doped. The electrical conductivity of a silicon wafer depends on the type and concentration of doping.

    Optical properties: Silicon wafers have different transmission and reflection properties for different wavelengths of light, which are critical in photolithography and other semiconductor processing.

    Mechanical properties: The silicon wafer has excellent mechanical stability and hardness, which enables it to maintain shape stability in various processing processes.

    Thermal characteristics: Silicon has good thermal conductivity and thermal stability, which is essential for the heat dissipation and stable operation of integrated circuits.

    Chemical reactivity: Silicon wafers have high chemical inertness to many chemicals, but they also react with some compounds under certain conditions, which requires attention during the manufacturing process.

    Surface treatment: The surface of Si wafer is usually subjected to a variety of treatments, such as chemical mechanical polishing (CMP), cleaning and coating, to ensure the surface’s flatness and purity.

    Lattice defects: Silicon wafers may have lattice defects, such as dislocations and grain boundaries, that can affect the electrical and mechanical properties of the wafer.

    Electronic mobility: The electronic mobility of silicon wafers is an important parameter when it is used in electronic devices such as transistors, which directly affects the speed and performance of the devices.

    Photoluminescence: In some special applications, silicon wafers may exhibit photoluminescence properties, which have important implications in optoelectronics and sensor technology.

    Crystallization method: Si wafers can be prepared by a variety of methods such as solidification, vapor deposition, and liquid phase diffusion, each of which affects the performance and cost of silicon wafers.

    In general, Si wafers, as the fundamental material of the semiconductor industry, have a special set of physical, chemical and electronic properties that are critical to the manufacture and performance of modern electronic devices. Through continuous improvement of manufacturing processes and material properties, the performance and application range of silicon wafers continue to expand, driving the development and innovation of semiconductor technology.

    Si wafer

    Si wafer’s applications

    Silicon wafers, with their unique properties and versatile characteristics, find widespread application across various industries and technological domains. From electronics to solar energy, Si wafers play a pivotal role in enabling innovation and advancement. Here, we explore in detail the diverse applications of silicon wafers, spanning over 1200 words.

    1. Semiconductor Industry: Silicon wafers serve as the fundamental substrate for manufacturing semiconductor devices, including microprocessors, memory chips, and integrated circuits (ICs). The semiconductor industry heavily relies on silicon wafers due to their excellent electrical properties and compatibility with semiconductor fabrication processes.
    2. Integrated Circuits (ICs): Silicon wafers are the building blocks of integrated circuits, which are essential components in electronic devices such as smartphones, computers, and consumer electronics. The precise patterning and doping of silicon wafers enable the creation of complex electronic circuits on a microscopic scale.
    3. Microelectronics: Silicon wafers are utilized in the production of various microelectronic components, including diodes, transistors, and sensors. These components form the backbone of modern electronic systems, facilitating functions such as signal processing, amplification, and sensing in diverse applications.
    4. Photovoltaic (PV) Cells: Si wafers serve as the substrate for manufacturing photovoltaic cells, which convert sunlight into electricity. Photovoltaic technology is widely used in solar panels for residential, commercial, and industrial applications, contributing to renewable energy generation and sustainability efforts.
    5. Solar Energy: Si wafers play a crucial role in the solar energy industry, where they are employed in both crystalline silicon and thin-film solar cell technologies. Silicon-based solar panels offer high efficiency, reliability, and scalability, making them a preferred choice for harnessing solar power in grid-connected and off-grid systems.
    6. Optoelectronics: Si wafers are utilized in optoelectronic devices such as light-emitting diodes (LEDs), photodetectors, and optical fibers. These devices enable applications in telecommunications, display technologies, medical imaging, and industrial sensing, among others, by converting between electrical and optical signals.
    7. MEMS (Microelectromechanical Systems): Silicon wafers serve as substrates for fabricating MEMS devices, which integrate mechanical and electrical components on a microscopic scale. MEMS technology enables the development of sensors, actuators, and microfluidic systems for applications in automotive, healthcare, aerospace, and consumer electronics.
    8. Biomedical Devices: Silicon wafers are utilized in the production of biomedical devices and implants for diagnostic, therapeutic, and prosthetic applications. Silicon-based sensors, microfluidic devices, and neural interfaces play a crucial role in advancing healthcare technologies, including wearable devices, implantable sensors, and lab-on-a-chip systems.
    9. Microfluidics: Silicon wafers are employed in microfluidic systems for precise manipulation and analysis of fluids on a miniaturized scale. Microfluidic devices find applications in chemical synthesis, biomedical diagnostics, drug discovery, and environmental monitoring, offering advantages such as reduced sample volumes, rapid analysis, and integration with other analytical techniques.
    10. Wafer Bonding and Packaging: Silicon wafers undergo wafer bonding processes to integrate multiple layers or devices, enabling the fabrication of advanced semiconductor structures and heterogeneous systems. Wafer-level packaging techniques enhance the performance, reliability, and miniaturization of electronic and optoelectronic devices, supporting diverse applications in electronics, photonics, and MEMS.

    In conclusion, the significance of silicon wafers spans a vast array of applications, encompassing various industries such as semiconductor manufacturing, electronics, renewable energy, healthcare, and beyond. These versatile substrates serve as the foundation for a multitude of devices and systems that power modern technology and drive innovation across diverse sectors.

    In the realm of semiconductor manufacturing, Si wafers serve as the fundamental building blocks for integrated circuits (ICs) and microchips, which are integral components of virtually all electronic devices, including smartphones, computers, and automotive systems. The precise properties and high purity of silicon wafers are critical for ensuring the performance, reliability, and scalability of these semiconductor devices, which continue to evolve in complexity and functionality.

    Moreover, Si wafers play a pivotal role in advancing renewable energy technologies such as solar photovoltaics (PV). Solar cells, which convert sunlight into electricity, rely on silicon wafers as the substrate for fabricating solar panels. The widespread adoption of silicon-based solar cells has contributed to the expansion of solar energy generation worldwide, driving progress towards a more sustainable and environmentally friendly energy landscape.

    Beyond electronics and energy, Si wafers find applications in various healthcare technologies, including biomedical sensors, diagnostic devices, and medical implants. Silicon-based microelectronics enable the miniaturization, integration, and precision necessary for developing advanced medical devices that enhance diagnosis, treatment, and patient care.

    Furthermore, Si wafers are integral to emerging technologies such as quantum computing, nanotechnology, and Internet of Things (IoT) devices, which are poised to revolutionize computing, communications, and data analytics. These cutting-edge applications leverage the unique properties of silicon and exploit the scalability and manufacturability of silicon wafers to enable novel functionalities and unprecedented capabilities.

    As material science, processing techniques, and device integration continue to advance, Si wafers are expected to play an increasingly indispensable role in driving innovation and enabling transformative technologies in the digital age. Research and development efforts focused on enhancing the performance, efficiency, and functionality of silicon-based devices will further expand the range of applications for silicon wafers, unlocking new opportunities for technological advancement and economic growth.

    In summary, Si wafers serve as versatile platforms that underpin a diverse array of applications across multiple industries, from semiconductor manufacturing and electronics to renewable energy, healthcare, and beyond. Their crucial role in enabling technological innovation and progress underscores the enduring significance of silicon wafers in shaping the modern world and driving forward the digital revolution.

    Q&A

    What are Si wafers used for?

    Silicon wafers are the semiconductors that are utilized for manufacturing microchips and chips in electronic devices. Integrated circuits are built by these semiconductors due to the features of the current of electricity through silicon wafers.

    1. Integrated Circuits (ICs): Silicon wafers serve as the substrate upon which intricate electronic circuits are built. These circuits can range from simple logic gates to complex microprocessors.
    2. Microelectronics: Silicon wafers are used in the manufacturing of various microelectronic devices such as diodes, transistors, and sensors.
    3. Solar Cells: Silicon wafers are the primary material used in the production of solar cells. The silicon is doped to create a p-n junction, which allows the conversion of sunlight into electricity.
    4. MEMS (Microelectromechanical Systems): Silicon wafers are used as the foundation for manufacturing MEMS devices, which are tiny mechanical and electrical components integrated onto a single chip. These devices have applications in sensors, actuators, and other microscale systems.
    5. Optoelectronics: Silicon wafers can be used as a substrate for optoelectronic devices such as light-emitting diodes (LEDs), photodiodes, and photovoltaic cells.
    6. Power Devices: Silicon wafers are utilized in the production of power semiconductor devices like insulated-gate bipolar transistors (IGBTs) and power MOSFETs.
    7. Semiconductor Research: Silicon wafers are commonly used as test substrates for developing and testing new semiconductor processes and technologies.

    What are 3 types of silicon wafers?

    The choice of silicon wafer depends on the application. Single crystal wafers are the most common choice for ICs, while polycrystalline wafers are often used for solar cells and LEDs. Amorphous silicon wafers are less common, but they are sometimes used for applications where cost is a major consideration.

    How are Si wafers made?

    A silicon wafer is made by spinning molten silicon in a crucible. A small seed crystal is inserted and slowly withdrawn until a large crystal is formed. Upon completion, a large, solid silicon wafer weighing several hundred pounds is produced. The chip is then tested to ensure its purity.

    Why are silicon wafers important?

    Silicon wafer technology is crucial for achieving high-quality IC packaging performance. Thin silicon wafers offer better thermal conductivity, minimize warpage, and support miniaturization – ideal for advanced IC packaging for compact electronic devices.

    How are silicon wafers tested?

    This testing process requires the application of a piece of equipment called a wafer prober. Wafer probing machines are automatic testing equipment used in the semiconductor manufacturing process to electrically test the integrated circuits of each wafer die.
