SiC Substrate Providing an Ideal Solution for New Energy Vehicles

    SiC Substrate‘s abstract

    Silicon Carbide (SiC) substrates represent a pivotal class of materials in the realm of electronic and semiconductor industries. Renowned for their exceptional physical and electrical properties, SiC substrates have found diverse applications across various technological domains. This abstract delves into the different types of SiC substrates, their unique characteristics, and their wide-ranging applications.

    Types of SiC Substrates:

    1. 4H-SiC and 6H-SiC:
      • Silicon Carbide exists in multiple polytypes, with 4H-SiC and 6H-SiC being the most prevalent. These hexagonal crystal structures endow SiC substrates with distinct electronic and thermal properties.
    2. Semi-insulating SiC:
      • Semi-insulating SiC substrates are particularly valuable for high-frequency and high-power electronic devices due to their low electrical conductivity, enabling minimal signal interference.
    3. N-type and P-type SiC:
      • SiC substrates can be doped to exhibit either n-type or p-type conductivity, enhancing their versatility for different semiconductor device applications.
    4. Single Crystal and Polycrystalline SiC:
      • Single crystal SiC substrates offer superior electronic properties and are preferred for high-performance devices, while polycrystalline SiC substrates find applications where cost-effectiveness is paramount.

    Applications of SiC Substrates:

    1. Power Electronics:
      • SiC substrates are integral in the production of power semiconductor devices such as Schottky diodes, MOSFETs, and IGBTs. Their high breakdown voltage and thermal conductivity make them ideal for power applications.
    2. Radio Frequency (RF) Devices:
      • The unique combination of high electron mobility and thermal conductivity in SiC substrates enhances the performance of RF devices, making them suitable for communication systems and radar applications.
    3. Light Emitting Diodes (LEDs):
      • SiC substrates serve as an excellent platform for manufacturing LEDs. The material’s wide bandgap allows for efficient light emission, contributing to the development of high-brightness and energy-efficient LEDs.
    4. Optoelectronics:
      • SiC substrates play a crucial role in optoelectronic applications, including photodetectors and solar cells. The material’s stability and resistance to harsh environmental conditions make it well-suited for these applications.
    5. High-Temperature Electronics:
      • SiC substrates excel in high-temperature environments, making them indispensable for applications in aerospace, automotive, and industrial sectors where traditional semiconductor materials may struggle.
    6. Research and Development:
      • SiC substrates are extensively used in research and development activities for exploring and advancing semiconductor technologies, contributing to the evolution of the electronics industry.

    In conclusion, Silicon Carbide substrates represent a diverse and vital class of materials with broad applications in electronic and semiconductor technologies. The various types of SiC substrates cater to different requirements, and their unique properties continue to drive innovations in power electronics, RF devices, LEDs, optoelectronics, high-temperature electronics, and beyond. The ongoing research and development in the field promise further enhancements and novel applications for SiC substrates in the future.

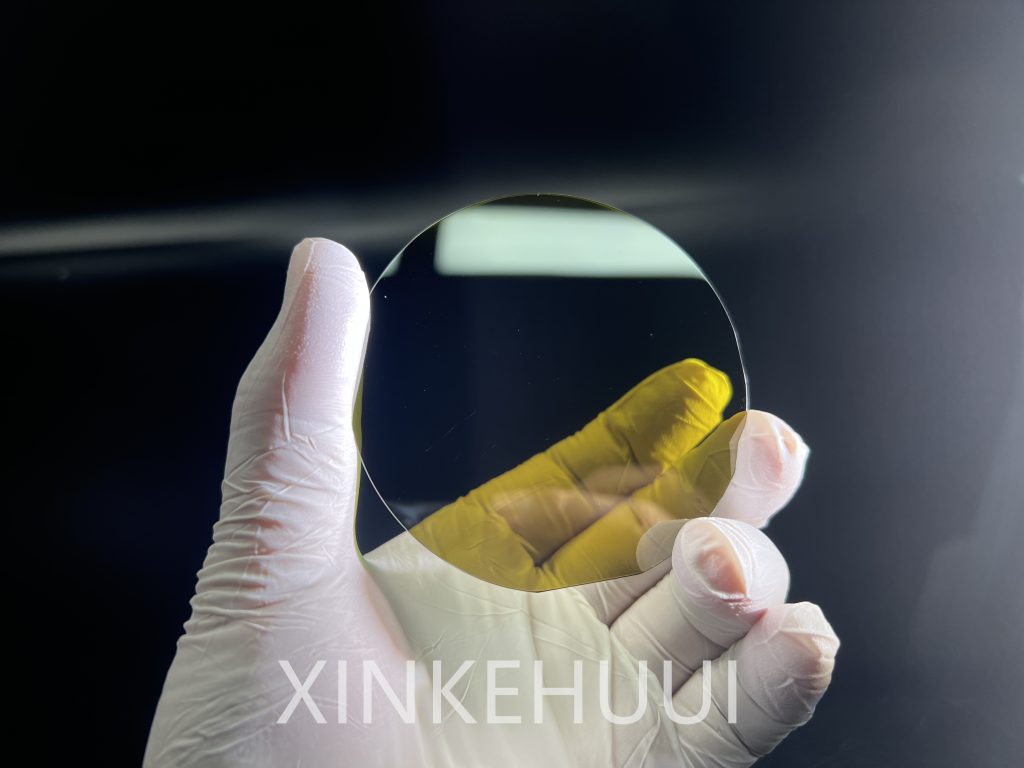

    4H n-type Silicon Carbide Single Crystal Substrate

    SiC Substrate

    The SiC Substrate 4H n-type Silicon Carbide (SiC) single crystal substrate is a crucial semiconductor material extensively employed in power electronic devices, radiofrequency (RF) devices, and optoelectronic devices. This article provides a comprehensive review of the preparation methods, structural characteristics, application domains, and research progress of the 4H n-type Silicon Carbide single crystal substrate.

    Firstly, the preparation methods of the 4H n-type Silicon Carbide single crystal substrate are introduced. Common methods include Physical Vapor Transport (PVT), Chemical Vapor Deposition (CVD), and Laser Assisted Separation (LAS). Different preparation methods impact the crystal quality, surface morphology, and cost-effectiveness of the substrate.

    Secondly, the structural characteristics of the 4H n-type Silicon Carbide single crystal substrate are explored. This includes the analysis of crystal structure, impurity concentration distribution, and defect types. High-quality 4H n-type Silicon Carbide single crystal substrates exhibit excellent crystal quality and lower impurity concentrations, crucial for enhancing device performance.

    Next, the applications of the 4H n-type Silicon Carbide single crystal substrate in power electronic devices, RF devices, and optoelectronic devices are discussed. Due to its superior thermal stability, electrical properties, and wide bandgap, the 4H n-type Silicon Carbide single crystal substrate demonstrates significant potential in various devices.

    Finally, the current research progress on 4H n-type Silicon Carbide single crystal substrates is summarized, and future directions are outlined. With continuous advancements in semiconductor technology, the 4H n-type Silicon Carbide single crystal substrate is poised to play a pivotal role in a broader spectrum of applications, supporting the improvement and innovation of electronic devices.

    Key Features of 4H n-type Silicon Carbide (SiC) Substrate

    Silicon Carbide (SiC) has emerged as a revolutionary material in the realm of semiconductor technology, and the 4H n-type SiC substrate stands out as a pivotal component with distinctive features. This substrate, characterized by its hexagonal crystal structure and n-type conductivity, exhibits a multitude of key features that contribute to its widespread utilization in various electronic applications.

    1. Hexagonal Crystal Structure:
      • The 4H SiC substrate possesses a hexagonal crystal lattice arrangement, a structural attribute that imparts unique electrical and thermal properties to the material. This crystal structure is crucial for achieving high-performance electronic devices.
    2. High Electron Mobility:
      • One of the standout features of the 4H n-type SiC substrate is its exceptional electron mobility. This property allows for faster charge carrier movement within the material, contributing to the substrate’s efficiency in high-frequency and high-power applications.
    3. Wide Bandgap:
      • The wide bandgap of SiC, a result of its hexagonal crystal structure, is a key feature that enhances the substrate’s performance. The wide bandgap allows for the creation of devices capable of operating at elevated temperatures and in harsh environments.
    4. N-Type Conductivity:
      • The 4H SiC substrate is specifically doped to exhibit n-type conductivity, meaning it has an excess of electrons as charge carriers. This type of doping is essential for certain semiconductor device applications, including power electronics and RF devices.
    5. High Breakdown Voltage:
      • The material’s inherent ability to withstand high electric fields without breakdown is a critical feature for power devices. The 4H n-type SiC substrate’s high breakdown voltage is instrumental in ensuring the reliability and durability of electronic components.
    6. Thermal Conductivity:
      • SiC substrates demonstrate excellent thermal conductivity, making them well-suited for applications where efficient heat dissipation is crucial. This feature is particularly advantageous in power electronic devices, where minimizing thermal resistance is essential.
    7. Chemical and Mechanical Stability:
      • The 4H n-type SiC substrate exhibits robust chemical and mechanical stability, making it suitable for applications in harsh operating conditions. This stability contributes to the substrate’s longevity and reliability in various environments.
    8. Optical Transparency:
      • In addition to its electronic properties, the 4H SiC substrate also possesses optical transparency in specific wavelength ranges. This property is advantageous for applications such as optoelectronics and certain sensor technologies.
    9. Versatility in Device Fabrication:
      • The unique combination of the 4H SiC substrate’s properties allows for the fabrication of diverse electronic devices, including power MOSFETs, Schottky diodes, and high-frequency RF devices. Its versatility contributes to its widespread adoption in different technological domains.
    10. Advancements in Research and Development:
      • Continuous research and development efforts in the field of SiC technology are leading to advancements in the key features of 4H n-type SiC substrates. Ongoing innovations aim to further enhance performance, reliability, and the range of applications for these substrates.

    In conclusion, the 4H n-type SiC substrate serves as a cornerstone in the evolution of semiconductor technology, offering a spectrum of key features that make it indispensable for high-performance electronic devices. Its hexagonal crystal structure, high electron mobility, wide bandgap, and other distinctive attributes position it as a leading material for advancing technologies in power electronics, RF devices, and beyond.

    Applications of 4H n-type Silicon Carbide (SiC) Substrate

    The 4H n-type Silicon Carbide (SiC) substrate, with its unique combination of material properties, finds diverse applications across a wide range of technological domains. From power electronics to optoelectronics, this substrate plays a pivotal role in enabling high-performance electronic devices. Below are some prominent applications of the 4H n-type SiC substrate:

    1. Power Electronics:
      • One of the primary applications of 4H n-type SiC substrates is in power electronics. The substrate’s high electron mobility and wide bandgap make it ideal for fabricating power devices such as Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFETs) and Insulated Gate Bipolar Transistors (IGBTs). These devices benefit from SiC’s ability to handle high voltages and temperatures, leading to more efficient and compact power systems.
    2. Radio Frequency (RF) Devices:
      • The exceptional electronic properties of 4H n-type SiC substrates, including high electron mobility, contribute to their use in RF devices. RF transistors and amplifiers manufactured using SiC substrates exhibit improved performance and reliability, making them crucial components in communication systems, radar applications, and wireless technology.
    3. High-Temperature Electronics:
      • The robust thermal conductivity and stability of 4H n-type SiC substrates make them suitable for high-temperature electronic applications. These substrates are employed in aerospace, automotive, and industrial sectors where traditional semiconductor materials may fail to operate effectively under elevated temperatures.
    4. Light Emitting Diodes (LEDs):
      • 4H n-type SiC substrates serve as a platform for manufacturing high-brightness LEDs. The wide bandgap of SiC allows for efficient light emission, contributing to the development of energy-efficient and long-lasting LEDs used in various lighting applications.
    5. Photovoltaic Devices:
      • SiC substrates are utilized in the production of photovoltaic devices, including solar cells. The material’s stability and resistance to environmental factors make it suitable for creating solar panels with enhanced durability and performance, especially in challenging outdoor conditions.
    6. Optoelectronics:
      • In optoelectronic applications, 4H n-type SiC substrates play a vital role. They are used in the fabrication of photodetectors and other optical devices. The unique properties of SiC contribute to the efficiency and reliability of optoelectronic components.
    7. High-Frequency Devices:
      • Due to its high electron mobility and excellent thermal conductivity, 4H n-type SiC substrates are employed in the manufacturing of high-frequency devices. These devices include high-frequency transistors and amplifiers used in telecommunications and wireless communication systems.
    8. Research and Development:
      • The versatility of 4H n-type SiC substrates makes them essential in research and development activities. Researchers leverage the unique properties of SiC to explore and advance semiconductor technologies, contributing to the continual evolution of the electronics industry.
    9. Medical Devices:
      • SiC substrates find applications in medical devices, particularly in high-frequency applications for medical imaging and diagnostic equipment. The material’s reliability and performance contribute to the precision and efficiency of medical devices.
    10. Sensor Technologies:
      • 4H n-type SiC substrates are utilized in various sensor technologies. Their stability, high-temperature tolerance, and sensitivity to certain environmental conditions make them suitable for applications such as gas sensors, pressure sensors, and temperature sensors.

    In conclusion, the 4H n-type Silicon Carbide substrate stands at the forefront of modern semiconductor technology, influencing a multitude of applications that require high-performance electronic components. From powering electronic devices to enhancing communication systems and enabling renewable energy technologies, the versatility of 4H n-type SiC substrates continues to drive innovation across diverse industries.

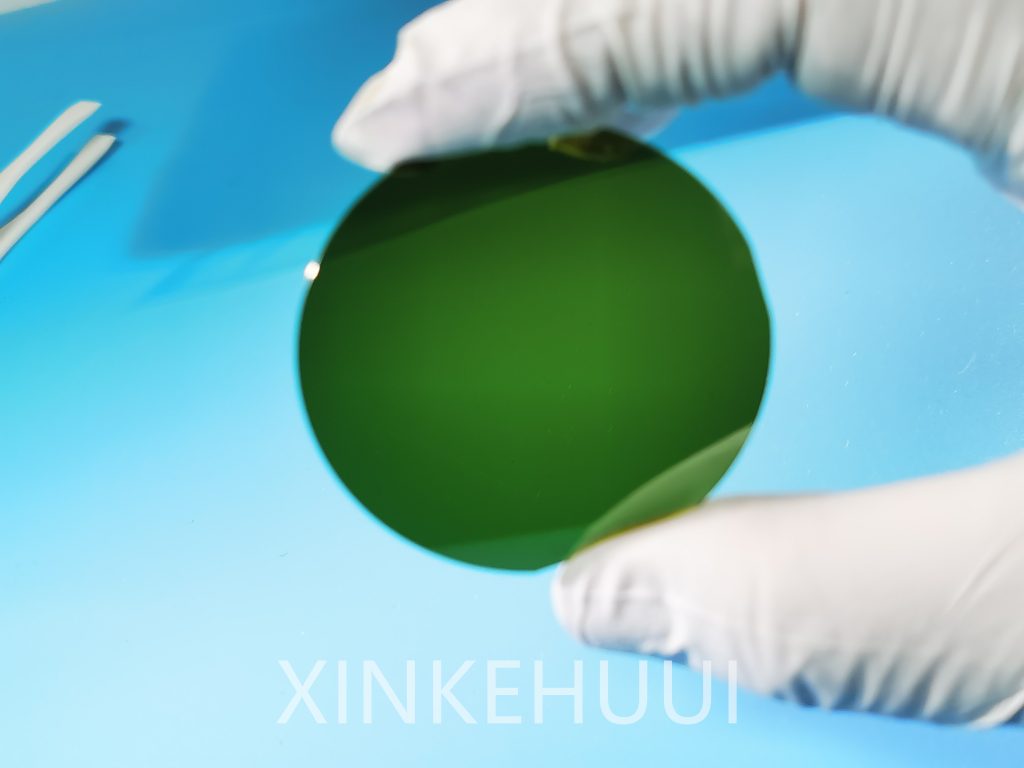

    4H n-type Silicon Carbide (SiC) Substrate’s showcase

    Why Choose 4H n-type Silicon Carbide (SiC) as a Substrate

    Silicon Carbide (SiC) has emerged as a material of choice for various semiconductor applications, and the 4H n-type SiC substrate, in particular, is gaining prominence due to its unique set of properties. Here are several compelling reasons why 4H n-type SiC is selected as a substrate for electronic devices and applications:

    1. Wide Bandgap:
      • A standout feature of 4H n-type SiC is its wide bandgap, a crucial factor for high-performance electronic devices. The wide bandgap allows SiC devices to operate at higher temperatures, making them suitable for applications where traditional semiconductors may struggle.
    2. High Electron Mobility:
      • The hexagonal crystal structure of 4H SiC results in high electron mobility, enabling faster charge carrier movement. This property is vital for applications in power electronics and radio frequency devices, where rapid signal processing and response times are essential.
    3. Thermal Conductivity:
      • 4H n-type SiC exhibits excellent thermal conductivity, a critical factor for applications requiring efficient heat dissipation. This property contributes to the reliability and longevity of electronic devices, especially those operating at high power levels.
    4. High Breakdown Voltage:
      • The material’s inherent ability to withstand high electric fields without breakdown is advantageous for power devices. 4H n-type SiC substrates ensure the reliability and durability of electronic components, making them suitable for power applications.
    5. N-Type Conductivity:
      • The deliberate doping of 4H SiC to exhibit n-type conductivity provides an excess of electrons as charge carriers. This is essential for certain semiconductor device applications, offering flexibility and versatility in designing electronic circuits.
    6. Hexagonal Crystal Structure:
      • The hexagonal crystal structure of 4H SiC contributes to its unique electronic and thermal properties. This crystal structure is crucial for achieving high-performance electronic devices and is preferred in various semiconductor applications.
    7. Optical Transparency:
      • In addition to its electronic properties, 4H n-type SiC demonstrates optical transparency in specific wavelength ranges. This property is advantageous for applications such as optoelectronics and certain sensor technologies.
    8. Chemical and Mechanical Stability:
      • 4H n-type SiC substrates exhibit robust chemical and mechanical stability, making them suitable for applications in harsh operating conditions. This stability ensures the longevity and reliability of devices in challenging environments.
    9. Versatility in Device Fabrication:
      • The unique combination of properties in 4H n-type SiC allows for the fabrication of diverse electronic devices, including power MOSFETs, Schottky diodes, and high-frequency RF devices. Its versatility contributes to its widespread adoption in different technological domains.
    10. Research and Development Advancements:
      • The ongoing research and development efforts in the field of SiC technology are continuously enhancing the properties of 4H n-type SiC substrates. Innovations aim to further improve performance, reliability, and the range of applications for these substrates.
    11. High-Temperature Electronics:
      • The combination of wide bandgap and excellent thermal conductivity makes 4H n-type SiC substrates particularly suitable for high-temperature electronics. This property is crucial in applications where devices need to operate in extreme conditions.
    12. Energy-Efficient LEDs:
      • The wide bandgap of 4H n-type SiC contributes to the efficiency of LEDs, making them suitable for high-brightness and energy-efficient lighting applications. This is crucial in the pursuit of sustainable and energy-saving lighting solutions.
    13. Solar Cell Efficiency:
      • In the field of photovoltaics, 4H n-type SiC substrates contribute to the efficiency of solar cells. The stability and reliability of the material enhance the performance of solar panels in converting sunlight into electrical energy.
    14. Medical Device Applications:
      • The stability and high-frequency capabilities of 4H n-type SiC make it valuable in medical device applications. It is employed in various high-frequency components used in medical imaging and diagnostic equipment.
    15. Advancements in Manufacturing Technologies:
      • The unique properties of 4H n-type SiC have spurred advancements in manufacturing technologies. The ability to fabricate devices with enhanced performance and efficiency has contributed to the evolution of semiconductor manufacturing processes.

    In conclusion, the choice of 4H n-type Silicon Carbide as a substrate stems from its exceptional combination of electronic, thermal, and optical properties. These features make it an ideal material for a wide array of applications, ranging from power electronics to optoelectronics and high-temperature environments. As research and development continue to advance, 4H n-type SiC substrates will likely play an increasingly crucial role in shaping the future of semiconductor technology.

    Q&A

    What is a SiC substrate?

    SILICON CARBIDE (SIC) SUBSTRATES. Page 1. The unique electronic and thermal properties of silicon carbide (SiC) make it ideally suited for advanced high power and high frequency semiconductor devices that operate well beyond the capabilities of either silicon or gallium arsenide devices.

    What is a SiC material?

    Silicon carbide, also commonly known as Carborundum, is a compound of silicon and carbon. Silicon carbide is a semiconductor material as an emerging material for applications in semiconductor devices. Silicon carbide was discovered by Pennsylvanian Edward Acheson in 1891.
