    SiC bulk wafer ‘s description

    Silicon Carbide (SiC) wafers are a crucial type of semiconductor material extensively utilized in the manufacturing of electronic and optoelectronic devices that demand high-temperature endurance, high-voltage stability, and high-frequency performance. SiC stands out as a wide-bandgap semiconductor material, characterized by a wider bandgap compared to conventional semiconductors like silicon. This attribute endows SiC with a higher breakdown voltage and the ability to function at elevated temperatures, making it ideal for rigorous applications.

    The production of SiC bulk wafer primarily employs two methods: Physical Vapor Transport (PVT) and Chemical Vapor Deposition (CVD). In the PVT method, the process begins with placing a seed crystal of SiC inside a high-temperature furnace. A source material, typically composed of silicon or carbon, is then heated until it vaporizes. This vapor is carried by a carrier gas, usually argon, and subsequently deposited on the seed crystal. This process results in the formation of a single crystal SiC layer. Conversely, the CVD method involves depositing a SiC layer on a substrate through the reaction of a gas mixture containing silicon and carbon precursors at elevated temperatures.

    After the SiC crystal is successfully grown, it undergoes a series of meticulous steps to be sliced into thin wafers. These wafers are then polished to achieve a high degree of flatness and smoothness, essential for further semiconductor layer growth. The polished SiC bulk waferserve as a robust platform for the deposition of additional semiconductor layers. These layers can be precisely doped with impurities to create p-type and n-type regions, which are fundamental for the fabrication of various semiconductor devices.

    SiC bulk wafers offer several significant advantages over traditional semiconductor materials such as silicon. One of the most notable benefits is SiC’s higher thermal conductivity, which allows it to sustain operation at higher temperatures without succumbing to thermal breakdown. Additionally, SiC’s higher breakdown voltage enables devices made from it to operate at much higher voltages and frequencies than those made from silicon. These properties render SiC bulk wafer particularly suitable for high-power electronics and high-frequency devices, where performance and reliability under extreme conditions are paramount.

    In summary, the unique properties of SiC bulk wafer, including their high thermal conductivity, superior breakdown voltage, and the ability to function at high temperatures and frequencies, make them indispensable in advanced electronic and optoelectronic applications. The advanced manufacturing techniques such as PVT and CVD play a critical role in producing high-quality SiC bulk wafers that meet the demanding requirements of modern semiconductor devices.

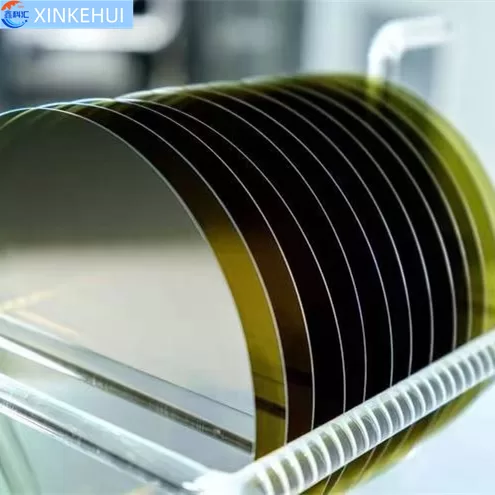

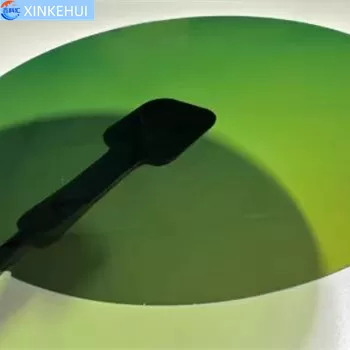

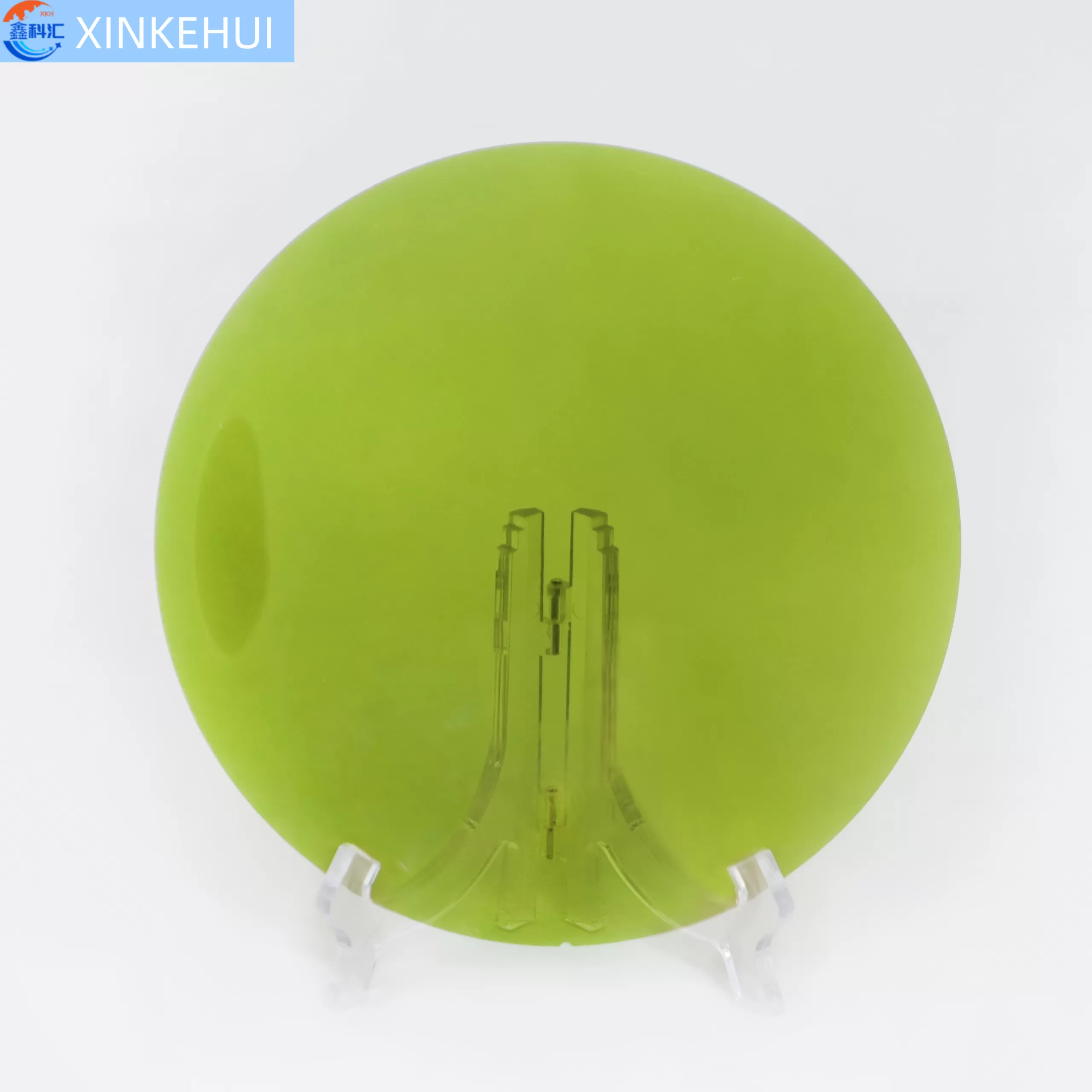

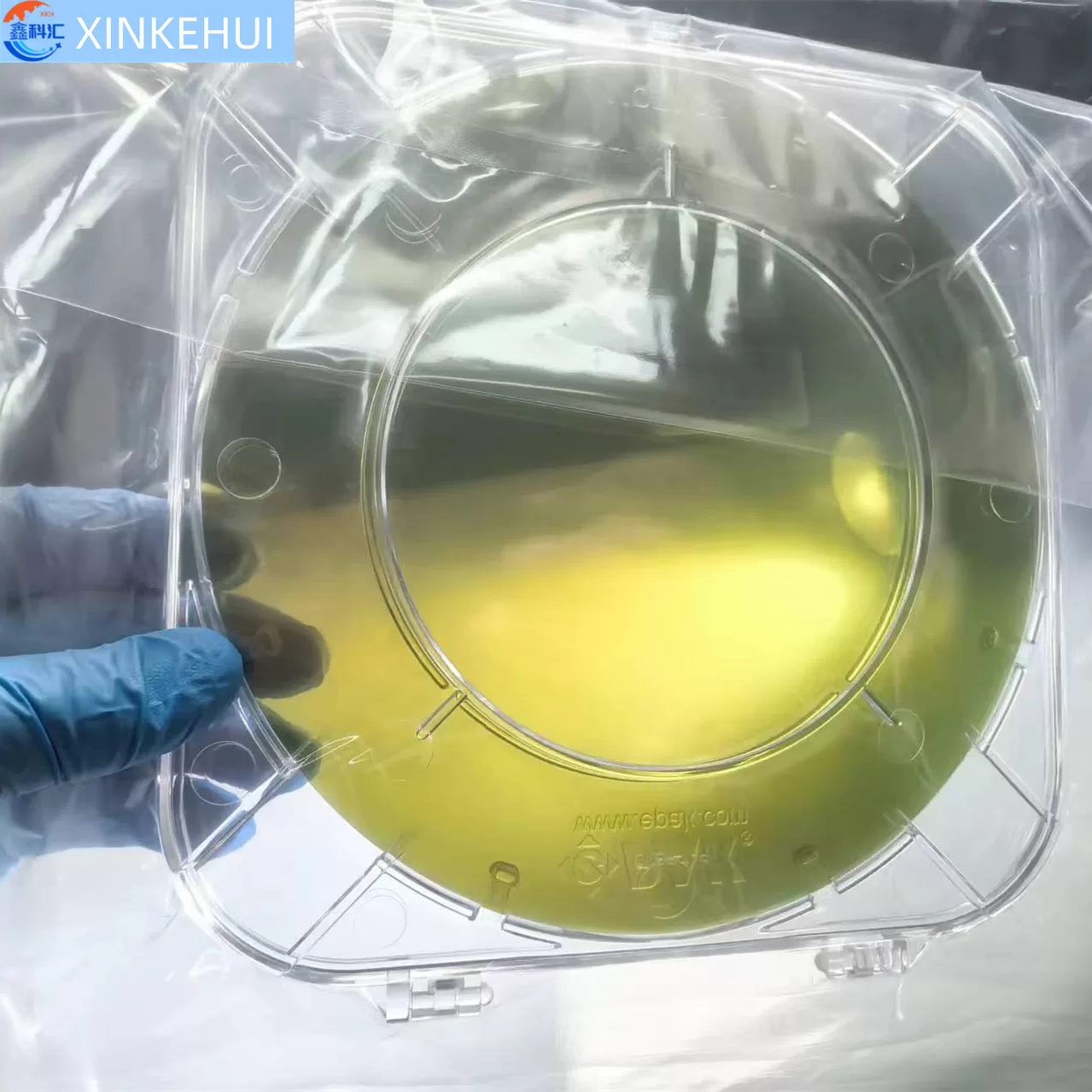

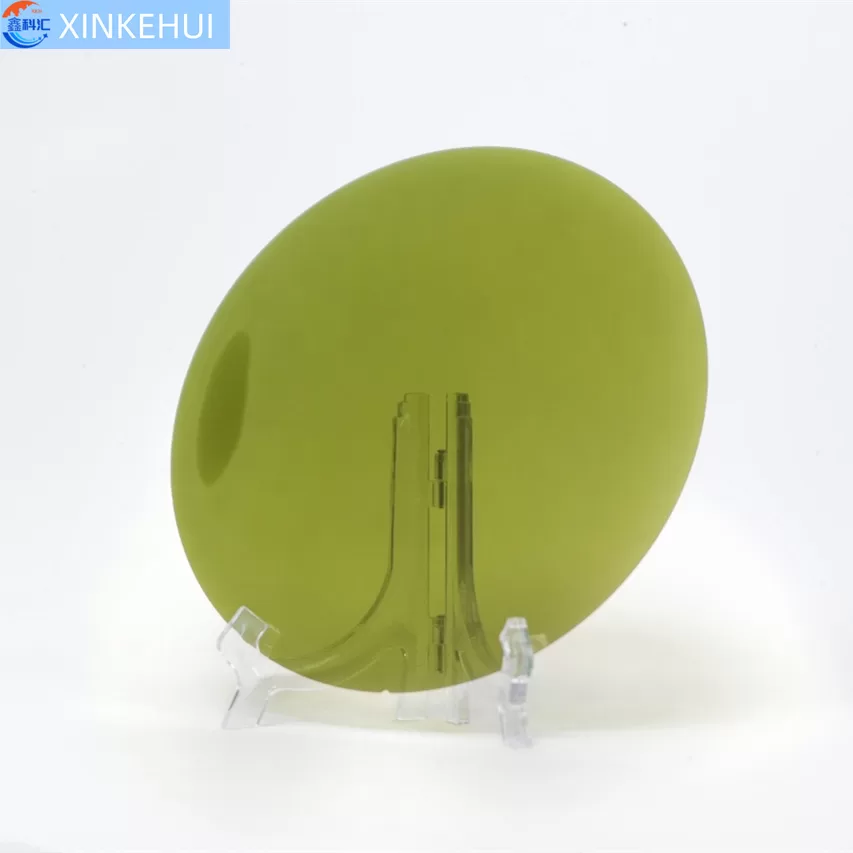

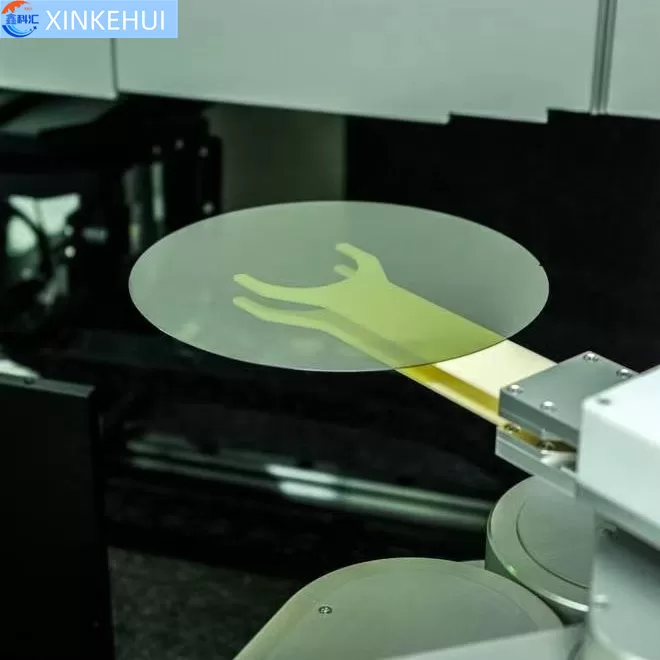

    SiC bulk wafer ‘s photo

    SiC bulk wafer ‘s properties

    Silicon Carbide (SiC) bulk wafers possess several important properties, making them suitable for high-performance applications. Here are some key properties of SiC bulk wafers:

    1. Electrical Properties:
      • High Bandgap: Typically around 3.0 eV, allowing operation at higher temperatures and voltages.
      • High Breakdown Electric Field: Approximately 2.8-4.0 MV/cm, which enables devices to operate at higher voltages.
      • High Electron Mobility: Generally between 700 and 1000 cm²/V·s, beneficial for high-frequency applications.
      • Low Intrinsic Carrier Concentration: This contributes to high-temperature stability.
    2. Thermal Properties:
      • High Thermal Conductivity: About 3-4 W/cm·K, which helps in efficient heat dissipation.
      • High Melting Point: Approximately 2700°C, making it suitable for high-temperature applications.
    3. Mechanical Properties:
      • High Hardness: SiC is one of the hardest materials, with a Mohs hardness rating of 9.0-9.5.
      • High Strength and Rigidity: It has high Young’s modulus and excellent mechanical stability.
    4. Chemical Properties:
      • High Chemical Stability: SiC is resistant to chemical attack and corrosion.
      • Oxidation Resistance: It forms a protective oxide layer when exposed to oxygen at high temperatures.
    5. Optical Properties:
      • Transparency to Infrared Radiation: Useful in certain optoelectronic applications.
    6. Conductivity Type:
      • N-type or P-type: SiC bulk wafer can be doped to create n-type or p-type material, essential for semiconductor device fabrication.
    7. Crystal Structure:
      • Polytypes: SiC exists in different polytypes (e.g., 4H-SiC, 6H-SiC), with 4H-SiC being the most common for electronic applications due to its superior electronic properties.

    These properties make SiC bulk wafers highly suitable for applications in power electronics, high-frequency devices, high-temperature electronics, and harsh environment sensors.

    Growth MethodPhysical Vapor Transport
    Physical Properties
    StructureHexagonal, Single Crystal
    DiameterUp to 150mm, 200mm
    Thickness350µm (n-type, 3″ SI), 500µm (SI)
    GradesPrime, Development, Mechanical
    Thermal Properties
    Thermal Conductivity370 (W/mK) at Room Temperature
    Thermal Expansion Coefficient4.5 (10-6K-1)
    Specific Heat (25⁰C)0.71 (J g-1 K-1)
    Additional Key Properties of II-VI SiC Substrates (typical values*)
    Polytype4H4H, 6H
    Resistivity~0.02 Ohm-cm> 1∙1011 Ohm-cm
    Orientation4° off-axisOn-axis
    FWHM< 20 arc-sec< 25 arc-sec
    Roughness, Ra**< 5 Å< 5 Å
    Dislocation density~5∙103 cm-2< 1∙104 cm-2
    Micropipe density< 0.1 cm-2< 0.1 cm-2

    SiC bulk wafer ‘s application

    Silicon Carbide (SiC) bulk wafers are increasingly being utilized across a wide range of applications, particularly in areas that demand high performance under extreme conditions. Here are some key applications of SiC bulk wafers:

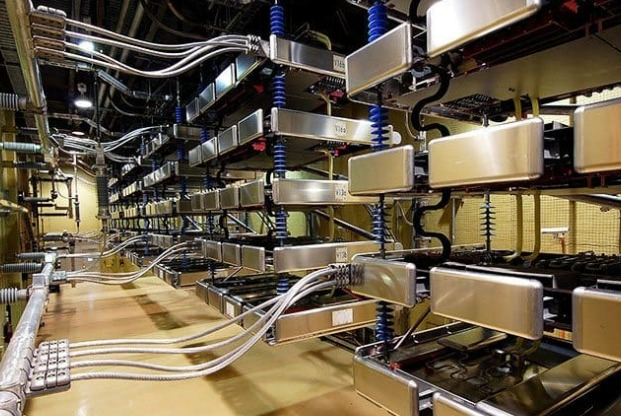

    High-Power Electronics

    1. Power Devices: SiC bulk wafers are used to fabricate power devices like MOSFETs, Schottky diodes, and thyristors. These devices benefit from SiC’s high breakdown voltage and thermal conductivity, making them ideal for applications in power converters, inverters, and motor drives.

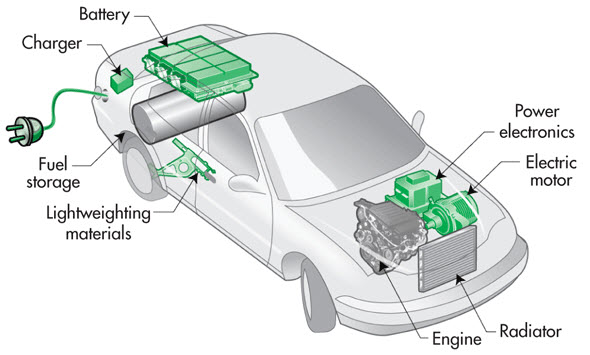

    2. Electric Vehicles (EVs): SiC-based power electronics in EVs improve efficiency, reduce weight, and extend the driving range. SiC MOSFETs and diodes are increasingly used in onboard chargers and powertrain inverters.
    3. Renewable Energy Systems: In photovoltaic inverters and wind turbine converters, SiC devices enhance efficiency and reliability, which are critical for sustainable energy applications.

    High-Frequency Devices

    1. RF and Microwave Devices: SiC bulk wafer are used in radio frequency (RF) and microwave power amplifiers. Their high-frequency performance makes them suitable for wireless communication, radar, and satellite communication systems.
    2. Telecommunications: SiC technology supports high-frequency operation in 5G networks and beyond, providing improved signal processing capabilities and bandwidth.

    High-Temperature and Harsh Environment Electronics

    1. Aerospace and Defense: SiC-based components are used in aerospace applications due to their ability to operate reliably under high temperatures and radiation environments. This includes applications in aircraft, spacecraft, and missile systems.
    2. Industrial Electronics: In industrial settings, SiC devices are used in motor control, power supplies, and high-temperature sensors, where robustness and reliability are essential.


    1. LEDs and Solid-State Lighting: SiC substrates are used for the growth of high-brightness blue and ultraviolet LEDs. They provide a lattice match for gallium nitride (GaN) epitaxial layers, enhancing the performance and efficiency of LEDs.
    2. Laser Diodes: SiC bulk wafer serve as substrates for laser diodes, which are used in various applications, including medical devices, telecommunications, and data storage.

    Automotive Electronics

    1. Power Management: SiC devices are integral in automotive power management systems, providing efficient energy conversion and power distribution.
    2. Battery Management Systems (BMS): In electric and hybrid vehicles, SiC-based components enhance the performance and reliability of BMS, crucial for battery health and longevity.

    Renewable Energy

    1. Photovoltaic Systems: SiC bulk wafer devices are used in solar inverters, improving the efficiency of converting DC electricity generated by solar panels into AC electricity used in the grid.
    2. Wind Energy: In wind turbine converters, SiC bulk wafer components enhance efficiency and reduce weight, contributing to more effective energy conversion.

    Industrial Applications

    1. Induction Heating: SiC’s ability to withstand high temperatures makes it suitable for induction heating applications used in industrial processing.
    2. Welding Equipment: SiC-based power electronics improve the performance and reliability of welding equipment, enabling better control and energy efficiency.

    Consumer Electronics

    1. Fast Chargers: SiC bulk wafer technology is employed in fast chargers for consumer electronics, providing higher efficiency and faster charging times.
    2. Power Adapters: SiC-based power adapters offer compact, efficient solutions for various consumer electronic devices.

    In summary, Silicon Carbide (SiC) bulk wafers play a crucial role in enhancing the performance and efficiency of devices across a wide array of sectors. These include high-power and high-frequency electronics, optoelectronics, automotive, renewable energy, and various industrial applications. The distinct properties of SiC bulk wafer, such as its wide bandgap, high thermal conductivity, and superior breakdown voltage, make it an exceptional material for applications that require high efficiency, high temperature endurance, and high voltage operation.
