Thin SiC Wafer Handling from Backgrinding to Dicing: Ring Frame Mounting, Tape Stress, Warpage and Edge Chipping Control

As silicon carbide wafers move toward thinner substrates for power semiconductor manufacturing, wafer handling becomes increasingly important.

A standard SiC wafer may remain relatively rigid during conventional processing, but after backgrinding, the reduction in thickness significantly increases sensitivity to bending stress, local pressure, tape tension and mechanical impact.

For thin SiC wafers, the transition from backgrinding to ring-frame mounting and dicing is therefore not simply a handling step. It can directly affect wafer breakage, edge chipping, die yield and downstream process stability.

This article explains the key factors engineers should evaluate when handling thin SiC wafers between backgrinding and dicing.

Why Thin SiC Wafers Are Difficult to Handle

Silicon carbide has excellent hardness, thermal conductivity and mechanical strength, which are important advantages for high-power semiconductor devices.

However, high hardness does not mean that a thin SiC wafer is immune to fracture.

After wafer thinning, several risks become more significant:

• wafer bow and warp;
• edge microcracks;
• local bending stress;
• backside grinding damage;
• tape-induced deformation;
• particle contamination;
• mechanical impact during transfer;
• edge chipping during mounting and dicing.

The thinner the wafer becomes, the more important it is to control the complete mechanical environment around the substrate.

Instead of considering backgrinding, tape mounting and dicing as separate processes, manufacturers should evaluate them as one continuous handling system.

Typical Process Flow

A simplified thin-SiC wafer process may include:

SiC wafer → protective tape mounting → backgrinding → stress relief → dicing tape mounting → ring-frame transfer → dicing → die expansion → die pick-up

Each step can introduce mechanical stress.

During backgrinding, protective tape is normally applied to the device side of the wafer to protect the patterned surface.

Commercial automated backgrinding-tape systems use controlled tape tension and application stress specifically because excessive or non-uniform tape stress can affect wafer condition. Some systems also monitor tape sagging during application.

After grinding, the wafer must then be transferred to the dicing tape and ring frame without introducing excessive bending.

1. Control Wafer Thickness After Backgrinding

Final wafer thickness strongly affects handling strategy.

For relatively thick wafers, conventional robotic transfer and cassette handling may be sufficient.

As the SiC wafer becomes thinner, however, it becomes increasingly sensitive to:

• vacuum chuck pressure;
• robot end-effector contact;
• unsupported wafer areas;
• rapid acceleration during transfer;
• tape tension;
• thermal deformation.

Automated mounting equipment is available for thin wafers. For example, some commercial wafer-mounting systems specify thin-wafer capability down to approximately 50 µm under appropriate equipment configurations.

This does not mean every 50 µm SiC wafer can be processed identically. Actual capability depends on wafer diameter, thickness, bow, surface condition, tape type and equipment.

For SiC production, the allowable handling window should therefore be established using the actual wafer specification.

2. Select the Dicing Tape According to the Process

Dicing tape performs several functions simultaneously.

It must:

• hold the wafer securely before cutting;
• maintain die position during dicing;
• tolerate cutting water and process debris;
• maintain sufficient dimensional stability;
• allow controlled die separation afterward.

Adhesion that is too low can allow wafer or die movement.

Adhesion that is too high can increase stress during die pick-up.

UV-release dicing tapes are often used because they can provide relatively strong adhesion during processing and then reduce adhesion after UV irradiation, making die removal easier. Commercial semiconductor equipment is specifically available to irradiate dicing tape after processing to reduce its adhesion strength.

When selecting tape for SiC, engineers should evaluate:

• base-film material;
• tape thickness;
• initial adhesion;
• post-UV adhesion;
• tape expansion behavior;
• temperature resistance;
• chemical resistance;
• compatibility with cutting water;
• residue after removal.

The tape should be qualified together with the wafer thickness and dicing process rather than selected independently.

3. Avoid Excessive Tape Tension

Higher tape tension does not automatically mean better wafer support.

Excessive tension can transfer stress into a thin SiC wafer and potentially increase bow or local deformation.

Uneven tension is particularly problematic.

If one area of the tape is stretched differently from another, the wafer may experience asymmetric stress after mounting.

Possible symptoms include:

• wafer curvature after mounting;
• uneven wafer height;
• unstable chuck contact;
• dicing depth variation;
• die displacement;
• edge cracking.

For this reason, automated wafer mounters typically control the tape application process rather than relying only on manual stretching.

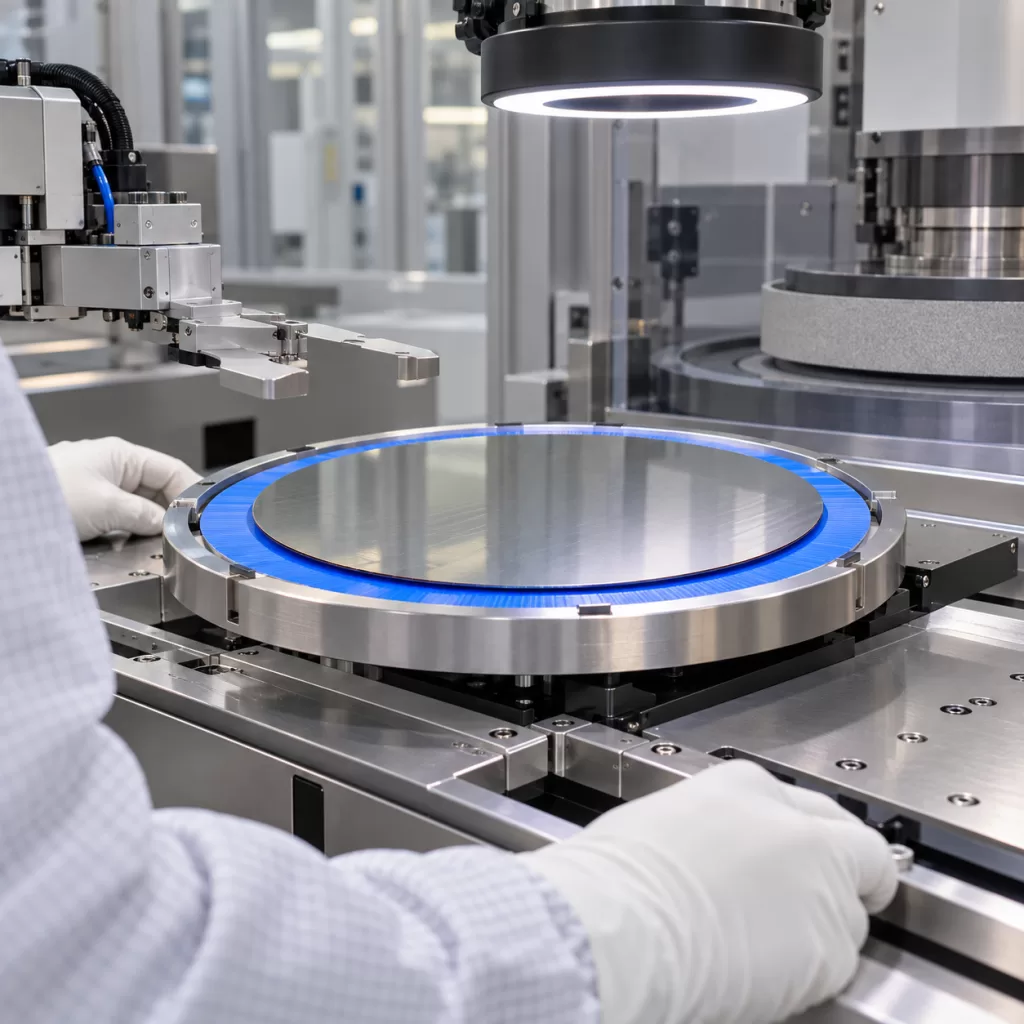

4. Ring-Frame Flatness Matters

Once the wafer is mounted on dicing tape, the ring frame becomes the mechanical reference for subsequent equipment.

A distorted ring frame can produce non-uniform tape tension even when the tape itself is suitable.

Important ring-frame parameters include:

• outside dimensions;
• inner opening diameter;
• thickness;
• flatness;
• rigidity;
• locating features;
• notch or orientation design;
• cassette compatibility.

The frame must also fit the wafer mounter, dicing saw, cassette and downstream die-handling equipment.

For thin SiC processing, frame flatness and rigidity become especially important because the wafer has less ability to resist deformation transmitted through the tape.

5. Leave Sufficient Clearance Around the SiC Wafer Edge

Direct mechanical contact between a brittle wafer edge and a metal ring frame should be avoided.

There should be sufficient tape area between:

SiC wafer edge → exposed tape area → ring-frame inner edge

This clearance serves several purposes.

It reduces the possibility of the wafer contacting the frame during transportation and allows sufficient tape area for mounting and expansion.

It also provides space for wafer alignment and dicing operations.

The exact clearance should be determined according to wafer diameter, frame opening and equipment requirements rather than using a universal value.

6. Edge Quality Becomes More Important After Thinning

Wafer-edge defects that are relatively harmless on a thick substrate can become fracture initiation points after thinning.

Before dicing, engineers should pay particular attention to:

• edge chips;
• grinding marks;
• microcracks;
• bevel damage;
• local scratches;
• particles attached to the edge.

Mechanical stress generated during backgrinding, transfer or mounting can propagate an existing edge defect.

This is one reason edge inspection should be considered before a valuable processed wafer enters the dicing stage.

For high-value SiC power-device wafers, preventive inspection can be considerably less expensive than losing a wafer during later processing.

7. Manage Bow and Warp Before Dicing

Bow and warp become increasingly important as wafers become thinner.

Potential sources include:

• residual crystal stress;
• backside grinding stress;
• deposited device layers;
• metallization;
• temperature changes;
• tape tension;
• asymmetric surface structures.

Large wafer deformation can affect vacuum chucking and cutting consistency.

For blade dicing, variations in wafer height can influence cutting depth and mechanical loading.

For laser-based processing, wafer flatness can also affect focus position and process repeatability.

It is therefore useful to measure wafer geometry after major thinning or backside-processing steps rather than relying only on the original incoming-wafer specification.

8. Control Stress During Tape Removal

Wafer safety remains important even after grinding or dicing is complete.

Removing protective tape too aggressively can introduce peeling stress into a thin wafer.

Commercial tape-removal equipment therefore uses controlled peeling mechanisms designed to reduce mechanical stress during removal. Some systems specify compatibility with wafers around 100 µm or thicker, depending on equipment configuration and process conditions.

Peeling direction, speed, temperature and supporting method should all be considered during process qualification.

9. Prevent Particle Contamination

Backgrinding and SiC dicing can generate substantial particles.

These particles may accumulate on:

• dicing tape;
• ring frames;
• wafer backside;
• equipment chucks;
• robot end effectors;
• cassettes.

Particles trapped between a thin wafer and a support surface can create localized pressure points.

For fragile thinned wafers, even a small particle may contribute to local stress.

Reusable ring frames should therefore have a defined cleaning and inspection procedure.

Operators should check for:

• adhesive residue;
• SiC debris;
• metal particles;
• corrosion;
• damaged edges;
• frame deformation.

Backgrinding Tape and Dicing Tape Are Not the Same

Another common mistake is treating all semiconductor tapes as interchangeable.

Backgrinding tape mainly protects the front side of the wafer during thinning.

Dicing tape, in contrast, secures the wafer and subsequently the separated dies to the ring frame.

Some specialized backgrinding tapes are also designed to remain on the wafer during additional backside processes such as wet etching or metallization.

Therefore, tape selection should consider the complete process sequence.

What Information Should Be Defined Before Processing Thin SiC Wafers?

When discussing thin-wafer processing with a SiC wafer supplier or processing partner, it is useful to provide:

Providing these parameters early helps prevent incompatibility between the wafer, tape, ring frame and downstream equipment.

Conclusion

Thin SiC wafer handling is a system-level engineering problem.

Successful processing depends not only on wafer thickness, but on the interaction between:

backgrinding → residual stress → tape selection → tape tension → ring-frame flatness → wafer warpage → edge quality → dicing → die pick-up

For power-device manufacturers moving toward thinner SiC substrates, controlling these interfaces can reduce wafer breakage and improve downstream dicing yield.

When sourcing custom SiC wafers or preparing substrates for backgrinding and dicing, buyers should provide the wafer diameter, starting and final thickness, TTV, bow/warp limits, surface requirements and downstream dicing conditions.
